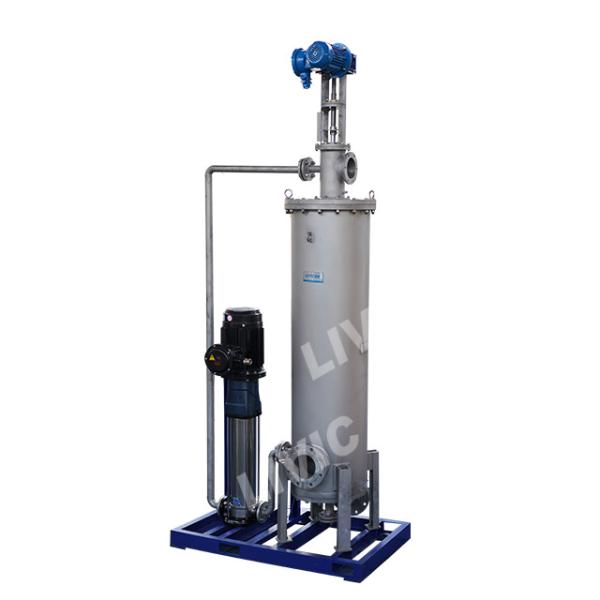

    316L Automatic Backwash Strainer For Water Filtration To 3 Micron

    316L Automatic Backwash Strainer For Water Filtration to 3 micron

    Description

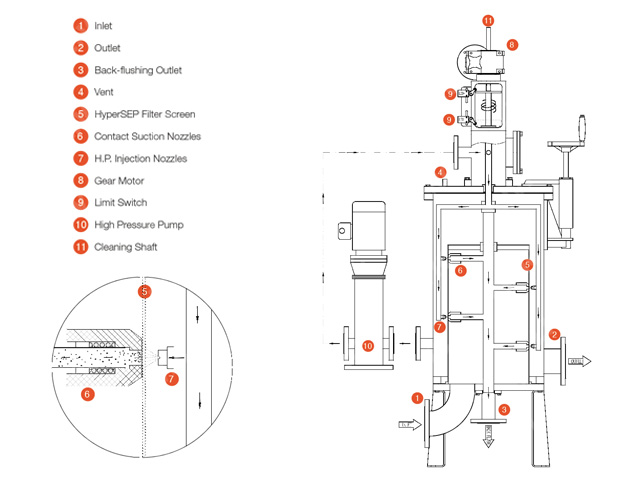

    Automatic Backwashing Filters and Strainers are designed on the base of scanning automatic self-cleaning Filter. When the filter screen can not be regenerated only by back washing with inside suction nozzles, JetFlow® Automatic Backwash Filter adopts the augmented injection back-washing design with a high pressure (H.P. for short) pump to clean the filter screen completely. It is the ideal solution for the challenging service conditions such as high TSS liquid, ultra-fine filtration degree down to 5 μm, sticky debris and particles or low inlet pressure. JetFlow® Automatic Backwash Filter can efficiently remove the suspended solids, sediment and plankton from water or water-like liquid. It keeps efficient self-cleaning performance and continuously work with one single filter. Filtration process is not interrupted during back-flushing. Chemical class design of JetFlow® Automatic Backwash Filter is also available to meet the requirements such as high temperature, high pressure, explosion-proof, zero leakage, etc. JetFlow® Automatic Backwash Filters can meet the most demanding requirements.


    The JetFlow® Automatic Backwash Filter can run in two modes.
    1. All-time suction and injection back-flushing. Every self-cleaning cycle, the suction back-flushing and H.P. injection back-flushing work together.
    2. Real-time suction and injection back-flushing. The H.P. injection reinforcing back-flushing steps in when the suction back-flushing interval is shorter than preset.

    Specifications:

    Standard Design Pressure0.6/1.0MPa (Depend on the Filter Model and Custom-made Requirement)
    Mini. Working Pressure30 kPa (Even Flowing by Gravity)
    Flowrate Range5~1000m³/h(Depends on the filtration degree and ppm)
    Applicable LiquidWater: Sea Water, Fresh Water, Other Raw Water
    Processs Liquid: Amine, Methanol, Feed Oil, Fuel
    Back-flushing LiquidFiltered Clean Water
    Filtration Degree3~300μm
    Working PrincipleSingle Filter Continuous Filtration, Automatic Back-flushing
    Design Temperature0-120 ℃ (Standard Type) /0-300℃ (Chemical Class)
    Back-flushing CycleDifferential Pressure 50kPa and Time
    Differential Pressure InstrumentIntelligent Differential Pressure Transmitter
    Inlet and Outlet SizeDN50~DN350
    Installation DirectionVertical
    Inlet and Outlet StandardDIN Flange PN10 / ANSI Flange CLASS150
    Housing Wet Part MaterialCS/304/316L/Duplex SS 2205/GRP
    Filter Screen Material304/316L/904L/2507
    Internal Parts MaterialPTFE,POM,316L/2507
    Carbon Steel AnticorrosionRilsan Coating/ Rubber Lining
    Sealing MaterialNBR/EPDM/VITON
    Injection Cleaning PumpMult-stage Centrifugal H.P. Pump
    Back-flushing ValvePneumatic Butterfly / Ball Valve
    Facility Supply380V AC,0.4-0.6MPa Clean and Dry Compressed Air
    Custom-made DesignExplosion Proof Design Involving Instruments and the Control System
    Designed and Manufactured per ASME / GB150 / PED Pressure Vessel Code
    Zero-leakage Shaft Sealing Design for flammable, explosive and toxic chemical fluids
