    Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment

    Ask Lasest Price
    Brand Name : LIVIC
    Model Number : BFM
    Certification : ISO9001/SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000pcs per year
    Delivery Time : 30 days after received your payment
    • Product Details
    • Company Profile

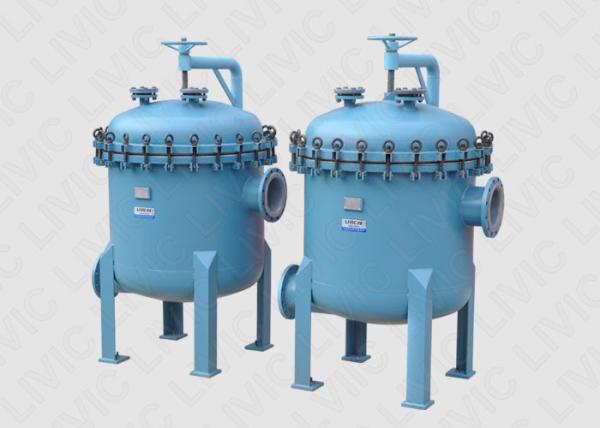

    Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment

    Maxline Multi-Bag Filter Housing for Industrial Water Treatment​


    Description


    Multi-bag filter housing with capacities of up to 12 size 02 bags. Positive o-ring sealing offers easy and safe operation. Ideal for process that demand frequent bag-change-outs and for batch process runs with high dirt load applications.


    Specifications:


    Main ModelBFM2/BFM3/BFM4/BFM5/BFM6/BFM7/BFM8/BFM9/BFM10/BFM11/BFM12
    Design Pressure ( MPa )1.0/1.6
    Design Temperature ( ℃ )0-250①
    Filtration Rate ( μm )1-2000
    Housing Material304/316L
    Support Legs, Bolts & Nuts MaterialSS
    Seal MaterialNBR/EPDM/VITON/Silastic/PTFE encapsulated Silastic/PTFE
    Outside Surface FinishBead Blasted
    Inside Surface Finish120Mesh Polishing ( Standard ), Food Grade Polishing, Halar Coating, PA11 Coating
    Standard Inlet & Outlet ConnectionFlange HG20592-2009( DIN )
    Optional ConnectionFlange HG20615-2009 ( ANSI ), NPT, Standard Sanitary Clamp
    Inlet and Outlet SizeDN80-DN250

    Applications:


    • Automotive
    • Food and Beverage
    • Chemical Processing
    • Paints, Inks, Resins and Coatings
    • Electronics
    • Petrochemicals
    • Municipal Water Treatment
    • Industrial Water Treatment
    • Pulp and Paper
    • Pharmaceutical
    • Lubricants, Metalworking Fluids
    • Solvents

    TECHNICAL FEATURES AND ADVANTAGES


    • Available in Type 304 stainless steel or carbon steel with standard Buna N o-rings, Viton o-rings are available as an option.
    • Hydraulic assisted davit cover is available as an option.
    • Tapered, electro-polished stainless steel perforated baskets.
    • Unique 3-point hold down ensures a high-quality seal between each filter bag and the housing body. A supplied special tool ensures, simple effective operation.
    • Positive o-ring sealing provides reliable operation.
    • Available in seven sizes for 3 through 24 standard size 02 double length filter bags.
